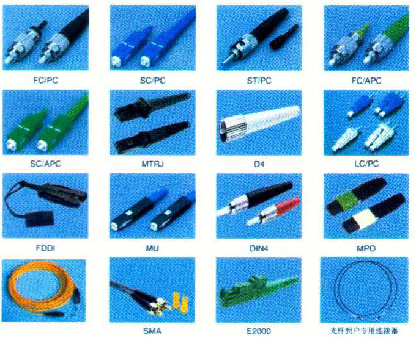

The optical fiber connector (Connector), commonly known as the live joints, commonly referred to as fiber optic connectors, is used to connect two optical fibers or optical fiber to form a continuous optical path of passive components can be reused. Optical fiber connectors have been widely used in optical fiber transmission lines, fiber optic patch panels and fiber optic test instruments, meters, is the largest number of optical passive devices.The optical fiber connector cable is composed of  (fiber optic) and pin body (connector). Both ends with a connection head is known as jumper;  only one end with a connector was called pigtail. Connector can be divided into the PC, UPC, APC type by the classification of mandrel face shape; multimode, single mode by the classification of fiber transmission pattern; by the classification of core number can be divided into single-core, dual-core, multi-core; by the structure classification based on the cable outer sheath, can be divided into the unarmored and armored;. Diameter of the single-core cable has Φ3.0 Φ2.0, Φ0.9 of three specifications, multi-core fiber optic cable have outdoor pigtail cable, indoor soft cable, bundle cable, ribbon cable points.The optical fiber connector production has been nearly 20 years of history, summed up a complete and efficient process, product performance is quite stable. Our products conforming to the telecommunications industry standard optical and mechanical properties conforming to the relevant provisions of the industry standard and has some advantages. The products comply with national standards for the communications industry, in line with the requirements of the Telcordia GR1209/1221 standard.



1）Ceramic ferrule fiber optic connectors
2）MT ferrule fiber optic connectors
3）Ribbon optical fiber connector
4）Bundle optical fiber connector
5）Waterproof pigtail cable activities connector
6）Soft cable activities connector
7）Armored cable active connections
8）Covered wire cable of active connections (FTTH special connector)
