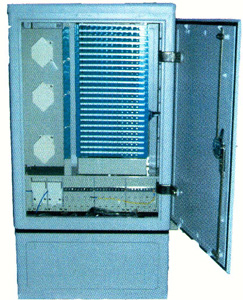

1) GXF5-277A-type cross connecting cabinet
GXF5-277A-type cross connecting cabinet is a interface device which used in connecting the cable to trunk cables and wiring cables in node of the cable access network. It has a fiber splicing, storage, and wiring functions, using a floor installation.
Feature and function：
Cabinet is made of high strength stainless steel plate, high strength, anti-aging, corrosion-resistant, all-weather protection and can withstand accidental or malignant destruction;
All corners of the box all dedicated fillet mold forming, surface treatment with brushed, beautiful appearance;
Box with double-layer structure, in the middle is filled with high-performance insulation materials with good heat insulation effect, can effectively prevent the box from condensation
Door with a special seal door seal, waterproof locks and three point door pin lock, safe, reliable, good sealing;
12-core welding wire integration module;
Can be installed with FC, SC, LC optical adapter;
Reliable cable fixing and grounding protection device;
Suitable for single and ribbon fiber optic cable into the side
9 fiber optic cable into the hole. |
 |

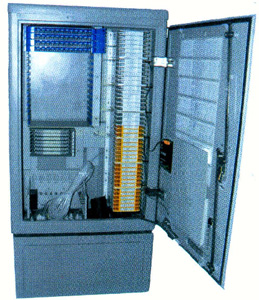

2) GXF5-277B-type cross connecting cabinet
GXF5-277B-type cross connecting cabinet is a interface device which used in connecting the cable to trunk cables and wiring cables in node of the cable access network. It has a fiber splicing, storage, and wiring functions, using a floor installation.
Features and functions：
Cabinet is composed of international aviation materials of high strength SMC (glass fiber reinforced unsaturated polyester plastic) at high temperature molded, long life, anti-aging, anti-radiation; surface without any protection, with all-weather protection；
Thick box, has good insulation effect, can effectively prevent the box condensation；
Door with a special seal door seal, waterproof locks and three point door pin lock, safe, reliable, good sealing;
12-core welding wire integration module；
Suitable for the installation of the FC, SC and LC optical adapter；
Reliable cable fixing and grounding protection device；
Suitable for single and ribbon fiber optic cable into the side；
9 cable imports. |
 |
3) GXF5-277C-type without jumper cross connecting cabinet
GXF5-277C-type without jumper cross connecting cabinet is a interface device which used in connecting the cable to trunk cables and wiring cables in node of the cable access network. It has a fiber splicing, storage, and wiring functions, using a floor installation.
Features and Functions：
Cabinet international aviation materials of high strength SMC (glass fiber reinforced unsaturated polyester plastic) at high temperature molded, long life, anti-aging, anti-radiation; surface without any protection, with all-weather protection;
Thick box, has good insulation effect, can effectively prevent the box condensation;
Door using a special seal door seal, waterproof locks and three-point door pin lock, safe, reliable, and good sealing；
12-core welding wire integration module, direct melting modules and Chu-fiber module；
Suitable for the installation of the FC, SC and LC optical adapter；
Reliable cable fixing and grounding protection device；
Backbone fiber optic cable capacity of 48 to 96 cores； |
 |

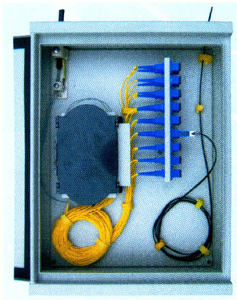

4) GXF5-277D-type cross connecting cabinet without jumper
GXF5-277D-type cross connecting cabinet without jumper is used for trunk cables and wiring cables in the cable access network node interface device has a fiber splicing, storage, and wiring functions, using a wall-mounted installation.
Features and functions：
Cabinet is made of high strength stainless steel plate, high strength, aging, corrosion-resistant, all-weather protection and can withstand accidental or malignant destruction;
All corners of the box all dedicated fillet mold forming, surface treatment with brushed, looks beautiful;
Box with double-layer structure, in the middle is filled with high-performance insulation materials with good heat insulation effect, can effectively prevent the box from condensation;
Door using a special seal door seal, waterproof locks and three-point door pin lock, safe, reliable, and good sealing；
12-core welding module；
Can be installed with FC, SC Fiber Adapter；
Reliable cable fixing and grounding protection device；
Suitable for single and ribbon fiber optic cable into the side；
9 fiber optic cable into the hole. |
 | |
| |
|
|
|
|
