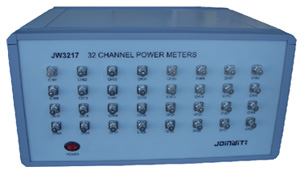

一、JW3217 Optical Components Test System
|
JW3217 Optical Components Test System is the new released multi Channel testers, It mainly focus on the PLC, and FBT coupler testy system requirements. It provide 8 channels power meter, maximum inner 1x4 optic switch, PDL controller, and can maximum measure 4 wavelength 1x64 splitter at one time. The function will be included insertion loss, PDL value, coupling ratio, access loss…and so on. This testing system can realize threshold setting, disqualification measurement value warming, auto-saving, EXCEL data sheet printing via the software connection with PC. It is am prefect measurement testing system for the PLC multiple testing, optical components PDL measurements, and long-term stability measurements…and so on.
Feature:
1. Provide 8 channels power meter
2. Maxim can test 64 channel PDL, IL, access loss and coupling ratio measurements
3. Inner 1x4 optical switch, can maxim measurement 4 wavelength test at the same time
4. Multi wavelength auto testing, threshold setting, auto saving, and EXCEL data sheet printing. |
 |

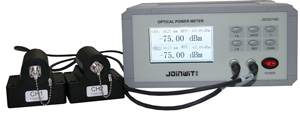

二、JW3201ND
JW3201ND is updated version of JW3201 dual channel bench-top power meter. Targeting at the PLC encapsulation technology, JW3201ND power meter could monitor the dual channel power simultaneously and greatly improves the coupling quality. External detectors would be placed freely and accommodate various of bare fiber clamps or adapters.
|
 |

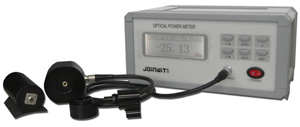

三、JW3201NX
| JW3201N Bench-top Optical Power Meter is a high precision and wide measurement range test instrument which designed specially aim at passive components factories, R&D institutions and universities. With features of accurate measurements, durable use and easy operation, JW3201 N Bench-top Optical Power Meter becomes a perfect test equipment in fiber optic works which can instead the advanced imported products with its high cost-performance ratio. |
 | |
| |
|
|
|
