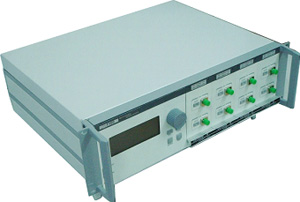

JWD1100 Benchtop High Stable Light Source
The JWD1100 series high stable light source are microprocessor controlled laser diode sources which can support the variety of emitters such as: DFB,FP,PUMP,SLED etc. It is specially used in passive components testing, power meter calibration and general laboratory uses. |
 |
Features
Provides 1~3 wavelength channels, any wavelength(s) can be optional
High Stability and Reliability
Stability: ±0.005 dB@15 min& ±0.05 dB@24 hour
Accurate internal temperature control ensures the constant
output wavelength and low bias.
Output power can be adjustable, the range is among 5%~100%
based on the maximum output power.
JWD1100 adopts the digital adjustment of output power, to prevent
the inconsistency bring from the potentiometers.
Digital adjustment of laser emitter temperature
JWD1100 supports the digital adjustment of laser emitter temperature,
so that the user can do the slight adjustment for the wavelength when in necessary.
Over temperature protection
JWD1100 will cut off the laser emitter automatically and stop the work when the
surrounding temperature over the limitation.
Auto Fan Control
JWD1100 can sensor the temperature through the internal transducer, and it will start
once the temperature over the standard, this can increase the using life of the unit. |
| |
|
|
|
