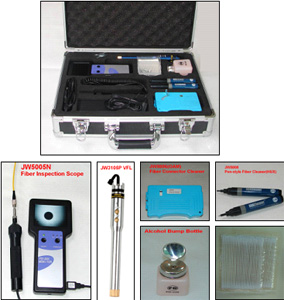

JW5002N Fiber Inspection& Cleaning
JW5002N Fiber Inspection and Cleaning Kits includes everything you need to perform inspection and cleaning of the fiber end faces, including Fiber Patch Cords, Bulkhead connections/In-adaptor ferrules and fibers in preparation for splicing applications. This tool kits contains following items:
1)JW5005N Probe Fiber Microscope with 200x magnification----1pcs
To perform fiber inspections on both patch cords and bulkhead adapters.
Including patch cords inspection tips of Univ. 2.5mm and Univ. 1.25mm；
Bulkhead inspection tips of FC/PC,SC/PC, ST/PC and LC/PC.
2)JW3105P Visual Fault Locator-----1pcs
Visually checking breakpoints, poor connections, bending or cracking in fiber optic cables
3)JW5006 Fiber Connector Cleaner(QAM Cleaner)----1pcs
To perform patch cords cleaning.
4)JW5008 Pen-style Fiber Cleaner (HuxCleaner)-2.5mm&1.25mm----1pcs of each
To perform bulkhead/in-adaptor ferrule cleaning
5)Alcohol Bump Bottle----1pcs
6)Cleaning Cotton Swabs----2pouch
7)Hard Carrying case-----1pcs
JW5001 Optical Cable Emergency Tool
Features
Well-done Casing and Fastness construction
Complete Configuration
Portable and Durable
|
No. |
Tool Name |
Qty |
Function |
|
1 |
Fiber coat stripper |
1 |
Peeling the coat of the fiber |
|
2 |
Assembled sleeve wrench |
1 |
Fixing splice closure/terminal box |
|
3 |
2M Tape Measures |
1 |
Mesuring the length of the fiber cable |
|
4 |
Utility Knife |
1 |
Accessorial tool for peeling the fiber cables |
|
5 |
Piano wire clamp |
1 |
Nipping the strengthening core of the fiber cables |
|
6 |
Cross Fiber reamer |
1 |
Peeling the fiber cables |
|
7 |
Nipper |
1 |
Entwining the fiber cables |
|
8 |
Scissors |
1 |
Snipping the fibre of the fiber |
|
9 |
Pliers |
1 |
Snipping the steel wire of the fiber cables |
|
10 |
Acuate clamp |
1 |
Accessorial tool for the splicing |
|
11 |
Mini Screwdriver |
2 |
Fixing the screws |
|
12 |
Inner-hexagonal Wrench |
1 |
Fixing the inner hexagonal screws |
|
13 |
Adjustable Spanner |
1 |
Accessorial tool for the splicing |
|
14 |
Assembled Screwdriver |
1 |
Loading and uploading the fiber optic closure |
|
15 |
Alcohol Pump Bottle |
1 |
Cleaning the fiber |
|
16 |
Mark Pen |
1 |
Marking the fiber |
|
17 |
Flashlight |
1 |
Lighting at night |
|
18 |
Diagonal cutting pliers |
1 |
Accessorial tool for peeling the fiber cables |
|
19 |
Voltage test pen |
1 |
Testing the security of the electrical source and electrical wire |
|
20 |
Loose skinning pliers |
1 |
Peeling the loose of the fiber cables |
|
21 |
Carrying Case |
1 |
Containing the above tools | |
| |
|
|
|
